Anaerobic Digester Mixing Systems: Lowest Cost, Reliability and Better Performance

Anaerobic digester mixing systems are easy to underestimate. A mixer may represent only one part of an anaerobic digestion plant, but poor mixing can affect effective digester volume, energy consumption, maintenance costs, biological performance and ultimately the reliability of the whole biogas process.

This becomes particularly important when digesters process agricultural feedstocks such as cattle slurry, manure, straw, crop residues and other fibrous materials. What looks like a reasonably uniform slurry on a process flow diagram may in reality contain grit, fibres, floating solids and dense particles that place considerable demands on mixing equipment.

For that reason, selecting a digester mixer should not be reduced to comparing motor sizes or initial purchase prices.

The better question is:

Which anaerobic digester mixing system will provide adequate mixing, acceptable energy consumption and reliable operation at the lowest total cost over its working life?

Recent experience at farm-based biogas plants in both the UK and Japan illustrates why this matters.

Why Anaerobic Digester Mixing Matters

The purpose of mixing is not simply to make the contents of the digester move.

A well-designed mixing system should help distribute incoming feedstock throughout the active digester volume, maintain appropriate solids suspension, distribute heat and bring microorganisms into contact with fresh biodegradable material.

It should also help reduce the development of stagnant areas, sediment accumulation and excessive floating layers.

In practical terms, effective mixing can help to:

• distribute fresh feedstock through the digester;
• bring anaerobic microorganisms into contact with biodegradable substrate;
• maintain a more uniform temperature;
• reduce excessive sedimentation;
• discourage thick surface crust formation;
• reduce dead zones;
• limit hydraulic short-circuiting between inlet and outlet;
• make better use of the available digester volume; and
• maintain more consistent operating conditions.

However, more mixing is not automatically better.

Mixers consume electricity. Excessive agitation can increase the parasitic energy demand of a biogas plant without providing a corresponding increase in methane production.

The objective should therefore be effective mixing at an appropriate energy input, not maximum possible agitation.

What Does Lowest Cost of Ownership Mean for a Digester Mixer?

The lowest-cost mixer is not necessarily the one with the lowest purchase price.

Total cost of ownership considers the expenditure associated with equipment over its whole working life. For anaerobic digester mixing systems this can include:

• initial purchase cost;
• installation cost;
• electricity consumption;
• routine servicing;
• replacement seals, bearings and other wearing components;
• labour required for maintenance;
• craneage or specialist access;
• process downtime;
• loss of biogas production during repairs;
• equipment replacement; and
• in extreme cases, the cost of partially or completely draining a digester.

A mixer that costs somewhat more initially may therefore prove substantially cheaper if it consumes less energy, lasts longer or can be maintained without interrupting the digestion process.

Five Factors That Determine the Real Cost of Anaerobic Digester Mixing Systems

1. Mixing effectiveness

The first requirement is straightforward: the equipment has to mix the material actually present in the digester.

That final qualification matters.

Equipment that performs perfectly well in relatively dilute liquids may struggle when presented with cattle manure, straw, fibrous crop residues, sand, grit or high-solids food waste.

Digester volume alone is therefore not an adequate basis for mixer selection. Feedstock characteristics, solids concentration, viscosity, digester geometry and the tendency of material to float or settle should also be considered.

2. Energy consumption

Mixing is one of the parasitic electrical loads at an anaerobic digestion plant.

Installed motor power tells only part of the story. A large mixer operating intermittently may consume less electricity over a year than a smaller unit running continuously.

When comparing equipment, operators should therefore look beyond the motor nameplate and ask how many kilowatt-hours the proposed system is expected to consume during normal operation.

3. Maintenance requirements

This can make an enormous difference to lifetime cost.

A mixer may be inexpensive to service when it is accessible from outside a tank. The same repair becomes much more disruptive if equipment has to be recovered from inside an operating digester.

Before purchasing a system, it is worth asking:

• Can the mixer be inspected without emptying the digester?
• Can wearing components be reached from outside the tank?
• Will maintenance require a crane?
• Does access involve confined-space working?
• How much digester downtime would a failure cause?
• How quickly are replacement components available?

4. Durability

Digesters can be demanding environments for mechanical equipment.

Agricultural feedstocks may contain grit and abrasive solids as well as long fibres and other material capable of obstructing or wrapping around equipment.

Pumps and mixers must also operate reliably while continuously exposed to digesting slurry.

Equipment designed for less demanding wastewater applications should not automatically be assumed to be suitable for an agricultural biogas plant.

5. Compatibility with the actual feedstock

Perhaps the most important lesson from operating plants is that mixer design should be based on the feedstock that really arrives at the plant rather than an idealised specification prepared during project development.

Feedstocks also change.

A plant originally designed around relatively uniform slurry may later accept vegetable waste, food residues or different agricultural materials. Those changes can alter solids concentration, viscosity and mixing behaviour considerably.

Common Anaerobic Digester Mixing Problems

Several apparently unrelated operational symptoms can point towards inadequate or inappropriate mixing.

Sedimentation

Dense particles may settle when there is insufficient circulation to keep them moving.

Accumulated sediment reduces the useful working volume of the digester and can eventually require a major clean-out operation.

The tank may still appear externally to have its full design capacity while a significant proportion of that capacity is gradually being lost internally.

Floating layers and crusts

Fibrous or buoyant material may accumulate at the surface of the digester.

A substantial crust can interfere with normal operation and may become progressively more difficult to remove once established.

Feedstock preparation is important, but the mixing arrangement must also be capable of handling the materials entering the plant.

Dead zones

A running mixer does not necessarily mean that the complete tank volume is being mixed effectively.

High velocities may occur close to the mixing equipment while other parts of the digester remain comparatively stagnant.

Digester geometry, mixer positioning, slurry rheology and mixing technology all influence the circulation pattern.

High electricity consumption

Continuous mixer operation should not automatically be regarded as desirable.

If sufficient homogenisation can be achieved with intermittent operation, reducing running hours can materially reduce energy consumption.

The correct operating regime is plant-specific, but mixer runtime should be treated as an optimisation variable rather than something that can never be altered.

Inaccessible equipment

This problem often becomes obvious only after the first major equipment failure.

A submerged mixer can appear perfectly satisfactory until it has to be repaired.

If retrieval involves stopping feed, lowering the digester contents, hiring lifting equipment or even emptying the tank, relatively routine maintenance can become a major operational event.

Types of Anaerobic Digester Mixing Systems

There is no single mixing technology that is best for every anaerobic digestion plant.

Common approaches include mechanical mixing, pumped liquid recirculation, gas mixing and systems that combine more than one mechanism.

Mechanical and submersible mixers

Mechanical mixers use rotating propellers or similar equipment to create circulation within the digester.

They are widely used and can be highly effective when correctly selected and positioned.

For difficult feedstocks, however, designers need to consider resistance to fibres, abrasive solids and other material as well as arrangements for servicing and retrieval.

External pumped recirculation

Digestate can be withdrawn from the tank and pumped back into it through suitably positioned pipework or nozzles.

One potential advantage is that much of the mechanical equipment can remain outside the digester where it is more readily accessible.

Performance nevertheless depends upon flow, nozzle design, digester geometry and the physical properties of the slurry.

Gas mixing

Biogas can also be recirculated or injected into digesters to promote movement.

Gas-based mixing can reduce reliance on submerged rotating equipment, although energy demand and suitability must be assessed for each individual application.

Combined mixing systems

Some systems combine external slurry pumping with gas entrainment or injection.

This can be used to promote both horizontal and vertical circulation while keeping major mechanical components outside the digester.

Does Better Digester Mixing Increase Biogas Production?

It can, but the claim needs qualification.

A mixer cannot create additional biodegradable energy in the feedstock.

What improved mixing can do is help a poorly mixed digester make better use of the feedstock already available.

If an existing plant suffers from dead zones, poor feedstock distribution, sedimentation or inadequate contact between microorganisms and fresh substrate, correcting those deficiencies may improve biological performance and methane production.

However, replacing an already effective mixing system with a more powerful one will not necessarily increase gas yield.

The aim should be optimised mixing, rather than maximum mixing.

Farm Biogas Plants Are Particularly Demanding Mixing Applications

Agricultural digesters illustrate why feedstock properties matter so much.

Cattle slurry may contain straw and bedding material. Grit and sand can enter with manure. Crop residues can introduce long fibres, while vegetable and food wastes can alter the consistency of the digester contents considerably.

The resulting material behaves very differently from water.

A mixer therefore has to be selected for slurry rheology and solids characteristics rather than simply for tank dimensions.

Earlier UK Farm Case Study: Oncoland Farm

An earlier (Landia sponsored) case study published on this page illustrated this problem at Oncoland Farm in Kent, UK.

The gas-to-grid farm AD plant, built in 2020, processes cattle slurry together with vegetable and fruit residues. Its originally supplied submersible mixers began failing within months, while plant staff concluded that the equipment was not sufficiently robust for the varied feedstock.

Removing the failed submerged equipment would itself have been disruptive, involving lifting equipment, process interruption and work around the digesters.

The farm subsequently installed four 18.5 kW Landia POP-I mixers, two on each digester. According to the plant operators, the replacement arrangement achieved more comprehensive mixing, eliminated the previous crust problem and allowed the mixers to run intermittently rather than continuously.

A Landia Chopper Pump was also installed on the pre-treatment tank to improve conditioning of the mixed slurry, vegetable and fruit feedstock.

The experience highlighted three issues that remain highly relevant when selecting anaerobic digester mixing systems:

• design equipment for the actual feedstock;
• consider maintenance access before equipment fails; and
• compare lifetime operating cost rather than purchase price alone.

New Farm Digester Mixing Case Study from Hokkaido, Japan

A more recent case provides another example of essentially the same engineering problem in very different surroundings.

At a farm-based biogas plant on Hokkaido, Japan, the existing mixers were reportedly unable to cope reliably with the manure and agricultural feedstock. The farmer also faced the prospect of costly digester draining when internal equipment required maintenance.

Landia's press release describing the installation is reproduced below in full and unchanged.

---

Press Release, 25 Aug 2026 :

New Landia digester mixing system for farm-based biogas plant in Japan

At a farm-based biogas plant in a remote area on Hokkaido, the northernmost of Japan’s main islands, a Landia Gas Mix system has replaced mixers that were failing to cope with manure/agricultural feedstock.

Frustrated with the problems caused to the original mixers by the inevitable high-tier solids from farm waste, the farmer has switched to Landia’s externally-mounted GasMix system, which utilises the Chopper Pump (invented by Landia in 1950) to continuously break down heavy particles.

An added annoyance for the farmer was the fact that the mixers could not be retrieved for maintenance or repair without the very costly and laborious draining down of the digester.

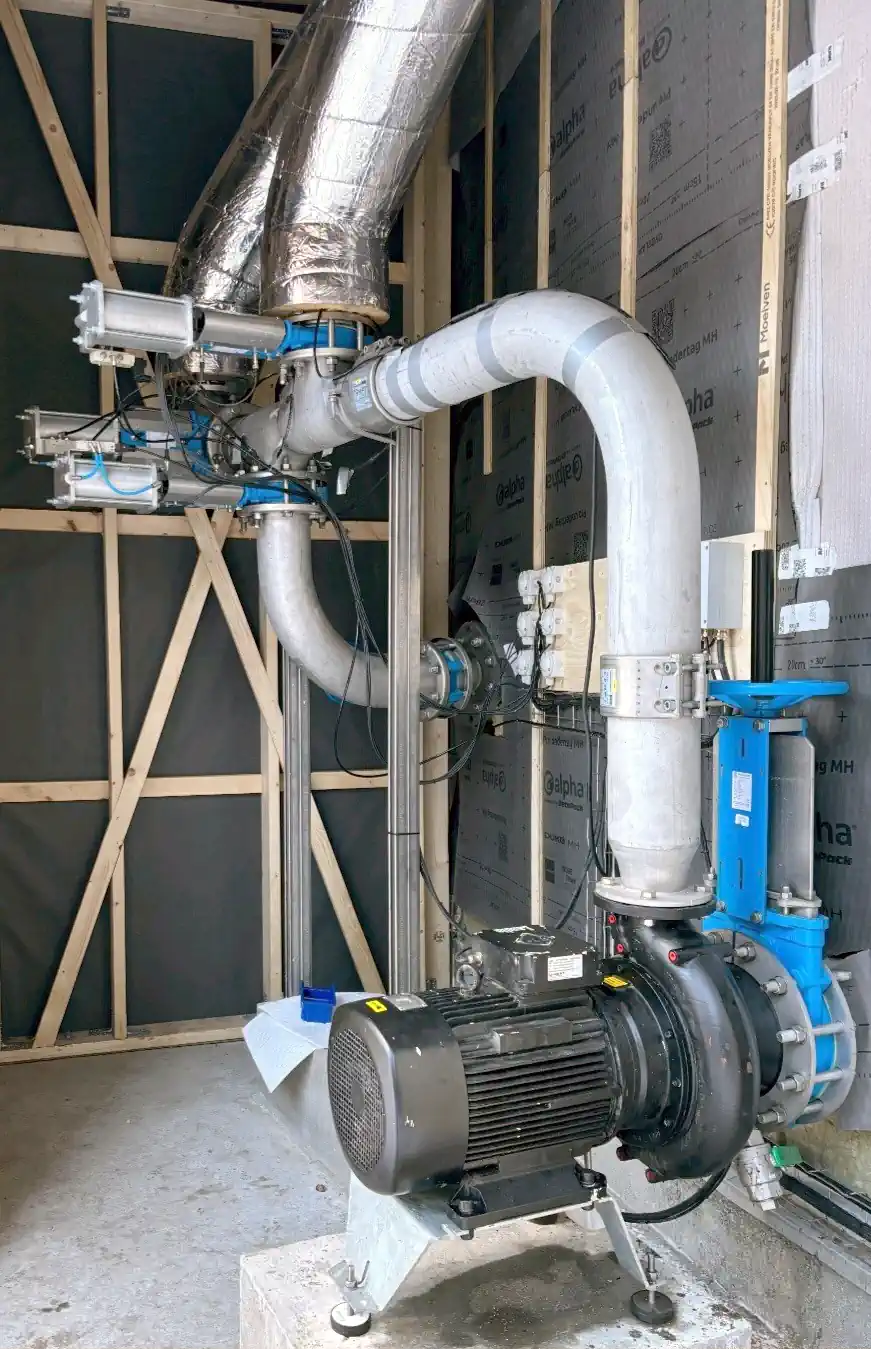

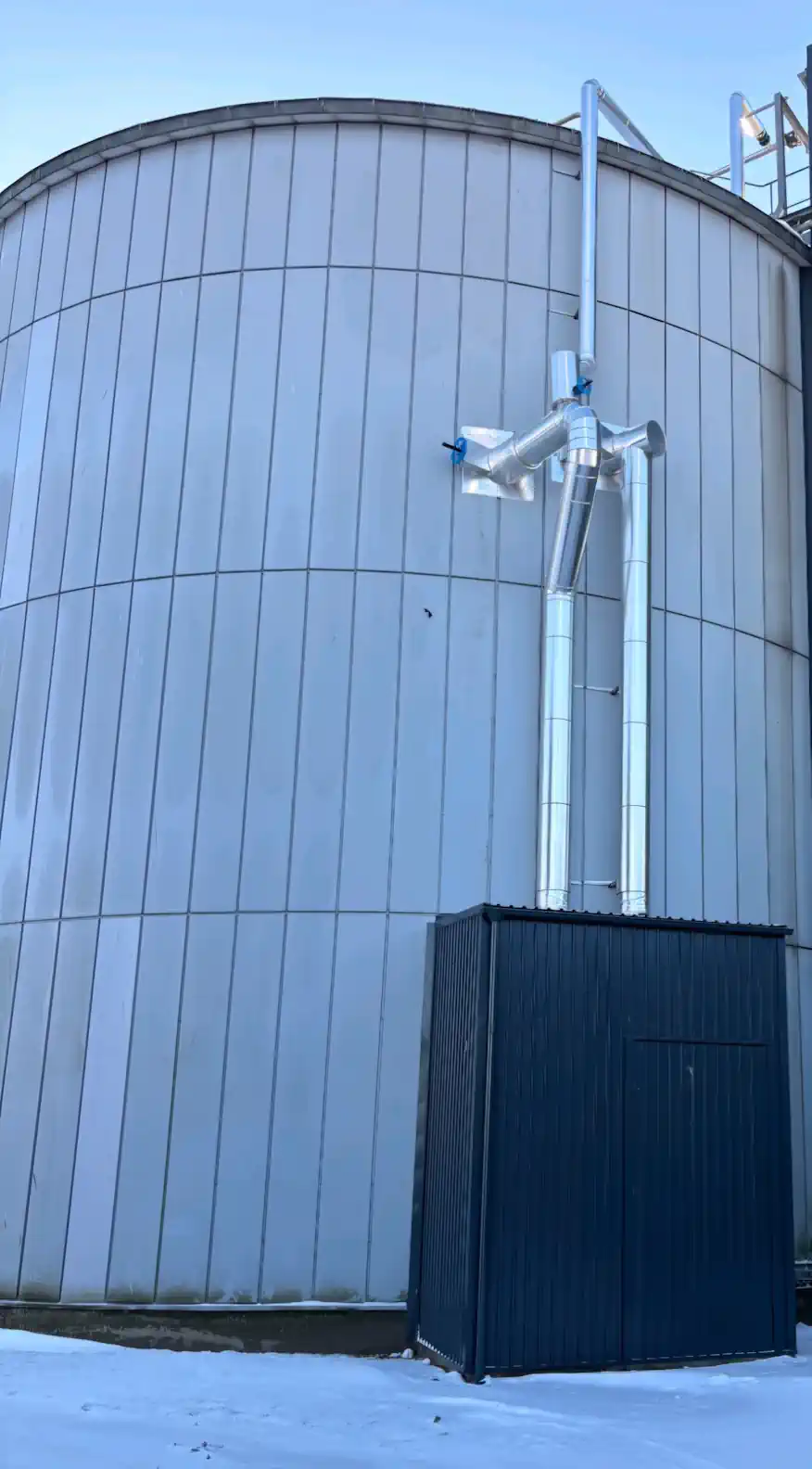

Utilising two 18.5kW floor-mounted Landia Chopper Pumps (that only have to run for 15 minutes per hour) and venturi nozzles, the simple design of the Landia GasMix recirculates and homogenises digester sludge. It injects the sludge back into the digester, increasing the active surface area for anaerobic bacteria with comprehensive vertical and horizontal mixing. There are no moving/wearing parts inside the digester, so all servicing can be conducted outside the tank, with no downtime.

‘In a remote, rural area, reliable equipment is essential’



“In such a remote, rural area,” said Fergus Clark from Landia (Asia/Pacific), “reliable equipment is essential. Many mixers are just fine in other, gentler applications, but at a biogas plant, unless they are designed for purpose, cannot deal properly with the grit, straw and solids that you always have to contend with in an agricultural feedstock.”

‘Can utilise excess heat’

He added: “Now, with an efficient and highly dependable mixing system, the farmer has a perfectly healthy biogas plant that can utilise the much-needed excess heat for his cow sheds in Hokkaido’s very cold winters – and sell excess renewable energy to the grid.”

www.landiaworld.com


 — PR ends —

What Can Other AD Plant Operators Learn from the Hokkaido Installation?

Although this is a manufacturer's press release about a particular product, the problems described are not unique to Landia equipment or to Japan.

They illustrate several broader lessons for anyone designing, operating or upgrading a farm-based anaerobic digestion plant.

Design for the feedstock you really have

This is perhaps the most important lesson.

Agricultural feedstocks are not clean liquids. Straw, grit, manure solids, fibres and other difficult material are part of everyday operation.

If those materials are foreseeable, the mixing system should be designed to handle them.

A system that works perfectly in a gentler application may not necessarily be appropriate inside a farm digester.

Maintenance accessibility should be part of equipment selection

The Hokkaido example highlights a cost that is easily overlooked during procurement.

If internal equipment cannot be recovered without substantially lowering or emptying the digester, its real maintenance cost may be far greater than anticipated.

Accessibility therefore has an economic value.

The question to ask is not simply, “How much does this mixer cost?”

It is also, “What will happen when this mixer eventually requires servicing?”

Consider intermittent mixing

The Landia release states that the two 18.5 kW pumps operate for only 15 minutes per hour.

This illustrates why annual energy consumption cannot be judged from motor rating alone.

Where effective mixing can be achieved intermittently, reducing operating hours can make an important difference to parasitic electricity consumption.

This should not be taken to mean that every digester should operate its mixers for exactly 15 minutes per hour. Mixing frequency and duration need to suit the individual feedstock, digester and mixing system.

External equipment can simplify maintenance

There are many successful anaerobic digesters using submerged and internal mechanical mixers, so placing equipment outside the tank should not be regarded as universally superior.

Nevertheless, locating pumps and wearing mechanical components where they can be accessed without entering or draining the digester can offer a substantial maintenance advantage.

Questions to Ask Before Buying an Anaerobic Digester Mixing System

Before specifying new equipment or replacing an existing digester mixer, plant owners and designers should establish the answers to questions such as these:

• • • What is the expected range of total solids?
    • How variable will the feedstock be?
    • Will straw, fibres, grit, sand or other abrasive material be present?
    • Could the feedstock become substantially more viscous than assumed during design?
    • Is sedimentation likely?
    • Is surface crust formation a recognised risk?
    • What circulation pattern will the proposed equipment create?
    • How many hours per day will the mixer need to operate?
    • What is the expected annual electricity consumption?
    • Which components are likely to wear?
    • Can those components be serviced from outside the digester?
    • What happens if the mixer fails while the digester is full?
    • Will maintenance require craneage or specialist access?
    • How much downtime could a major repair cause?
    • Are there reference installations processing genuinely comparable feedstocks?

These questions reveal considerably more about lifetime value than simply comparing capital quotations.

Don't Overspecify Digester Mixing Either

There is another side to the problem.

An undersized or unsuitable mixer can cause operational difficulties, but excessively powerful continuous mixing also costs money.

A biogas plant exists to produce useful renewable energy. Electricity consumed unnecessarily by pumps, mixers, blowers and other auxiliary equipment reduces the net energy available for export.

For this reason, good digester design seeks a balance between:

• • • adequate solids movement;
    • good contact between microorganisms and substrate;
    • prevention of unacceptable sediment and crust formation;
    • acceptable mechanical reliability; and
    • minimum reasonable parasitic energy consumption.

Total Cost of Ownership Is a Better Measure Than Purchase Price

The two farm case studies on this page were published several years apart and involve installations thousands of miles from each other, yet the underlying lesson is remarkably similar.

Anaerobic digestion feedstocks can be unforgiving.

The cheapest piece of mixing equipment at the procurement stage may become expensive if it consumes excessive electricity, repeatedly fails, cannot handle the real feedstock or requires major disruption whenever it needs servicing.

Conversely, the most expensive system is not automatically the best.

Plant owners should evaluate mixing systems on their ability to perform the required duty reliably throughout their working life.

Conclusion: Select Digester Mixing as Part of the Process, Not as an Accessory

Anaerobic digestion is a biological process made possible by engineering.

Mixing sits directly between those two disciplines.

The objective is not simply to install a motor and make the contents of a tank move. A successful anaerobic digester mixing system must create appropriate circulation for the actual feedstock, do so without excessive energy consumption and remain maintainable throughout the operating life of the plant.

For farm-based digesters processing manure, straw, crop residues and other high-solids materials, those requirements become particularly important.

The experience reported at Oncoland Farm in the UK and the more recent installation in Hokkaido both reinforce the same practical principle:

Specify anaerobic digester mixing systems for the real material that will enter the tank, and assess their whole-life operating and maintenance cost rather than judging them primarily by initial purchase price.

Getting that decision right can reduce maintenance, avoid unnecessary downtime, lower parasitic energy consumption and help preserve the effective working volume and reliable performance of the anaerobic digester for many years.

[Published February 2023. Rewritten with a new case study August 2026.]
