Biogas Digester Cost and Amazing Farm Fertiliser Savings

Stay on this page if you want our views on biogas digester cost and to see a case study on the dramatic fertiliser cost savings which were the result of fitting a new mixer system designed to raise the profitability of AD plants.

How much does it cost to build a biogas plant?

Biogas plant cost differs greatly depending on the scale and feedstocks used. Small scale farms utilizing manure and supplemented with purpose-grown crops are relatively economical and can produce relatively low amounts.

A home biogas plant may cost no more than $750.

At the opposite end of the scale are big commercially-available biogas plants using various materials like food residues, bio-products and special cultivations which costs from $0.5 Million to $30 Million for a large municipal biomethane plant in the US.

How to reduce the costs of your biogas / RNG plant and increase its profitability

What AD plant operators should be doing to save costs in the biogas/NG sector is to:

  • Evaluate the cost of the biogas plant in detail
  • Discover what is costing you money and how much
  • Create a spreadsheet with all the cost information listed from highest cost to lowest
  • Create a spreadsheet with all the revenue streams for the digester listed and with the income from each also shown
  • Start with the highest cost and then largest income, and consider for each what might be done to reduce cost and repeat the exercise for which be done to increase income. Go through the list fully until cost effects are only minimal
  • List in order of preference all cost savings and revenue increases that might be possible
  • List every potential revenue and other financial benefits your AD plant could receive
  • Draw up a plan of action to seek to achieve at least 3 of the best ideas for improving the profitability of your anaerobic digester.

Detailed project planning is essential for any Biogas and RNG projects.

Construction costs

The construction costs include all costs and losses that must be taken into account in the construction of the plant such as

  • excavation land digging/ site preparation
  • construction of the digester and storage system,
  • the piping system,
  • gas utilization system,
  • dung storage or silage storage systems and
  • others.

Construction expenses consist of wages as well as the cost of materials.

How do anaerobic digesters work?

Aerobic digestion is a procedure in which organic material is broken up by the oxidation of oxygen into closed units in a closed system. Methanogens digest organic food to make biogas, as well as digestates enriched with nitrogen, potassium and phosphorus that can be used by farmers as fertiliser.

This is a process that includes four distinct stages of conversion of feedstock into biogas. The final two processes have the biggest effects on the quality of biogas produced as they affect the conversion of methane into carbon dioxide. Different feedstocks significantly influence methane production.

Lifespan of plants

For calculation of depreciation, plant lifespans can be calculated as 15 years if maintenance is performed regularly.

Generally, the plant is required to replace its parts after eight to 15 years including the steel gas holding unit. The exposed steel parts must be painted at least 3 yearly.

It is advisable to use forecast interest rates to make worn-out equipment replacement calculations. During determining the costs, the inflation rate is a consideration so relate the future maintenance costs to a timeframe. The inflation rate is important in calculating the cash available to service the repairs incurred during the period.

Economics

A feasibility study is an exercise done to determine whether a profit from anaerobic digestibility is technically feasible at any farm. No project is viable to go ahead unless it is economically feasible.

The investment expenses to build an anaerobic digestion plant can be covered through grants or low-cost loans. However, before committing significant funds to the anaerobic digester its net operating costs must first be considered. The purchase of a digester should be conducted by first performing detailed economic studies.

How much does a biogas generator cost?

Anaerobic digestion system costs vary significantly according to the scale and complexity of plants.

Complexities vary largely depending on what kind of feedstock is treated. A slurry treatment system, including a very simple small digester and a CHP unit, could easily cost around £550,000 to £1 million.

Naturally, for larger systems, the cost increases according to size, biogas production capacity and design limitations imposed by planners and authorities.

The following is a case study published in May 2018  of an impressive cost reduction that was achieved:

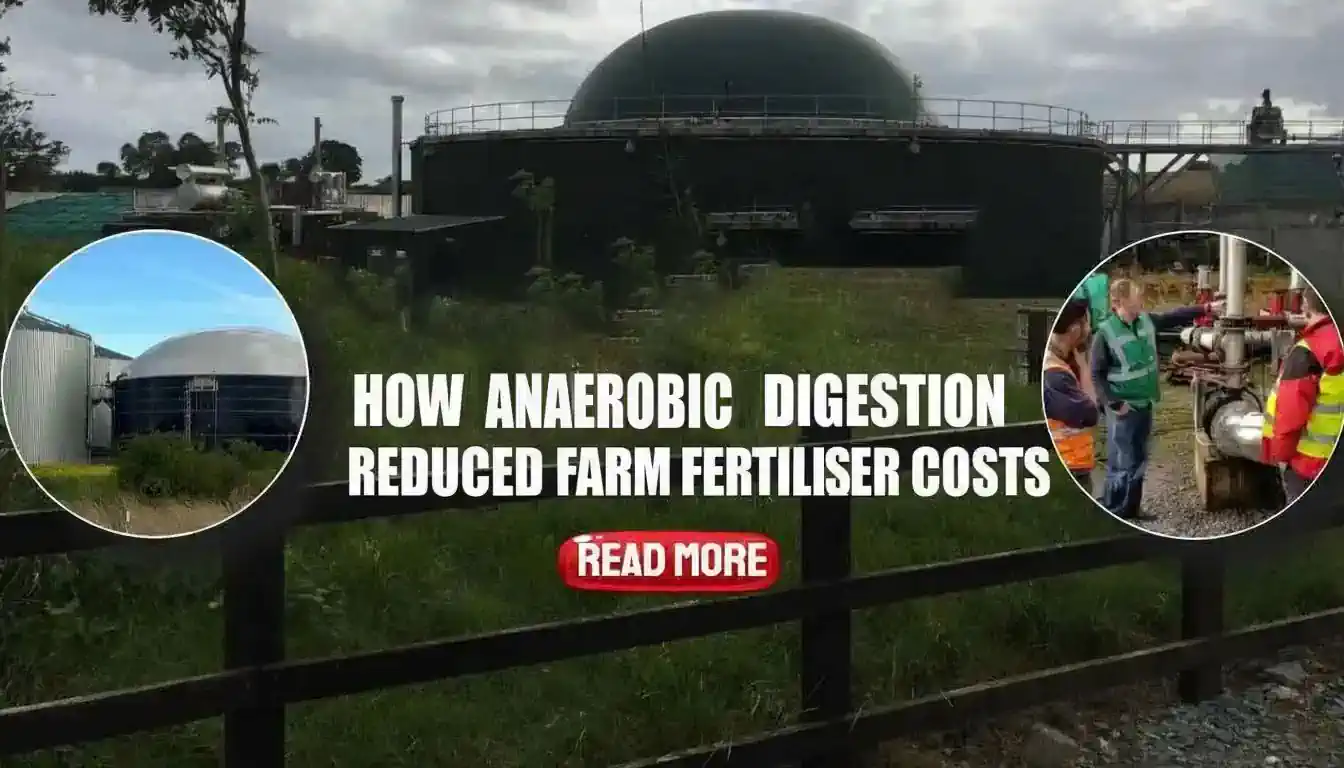

Biogas Digester Design Reducing Annual Fertilizer Cost to 1/3, 8 Years-On – Uses Landia GasMix

Be inspired by this news that a finely-honed biogas digester design in Ireland, is reducing the farm's Annual Fertilizer Cost to just 1/3, plus producing biogas renewable energy.

It is doing this 8 years on after commissioning the first digester unit.

Image shows the biogas digester design enhancing Landia GasMix mixer system which reduces biogas digester farm fertiliser cost.
David McDonnell (centre) with GreenGas Plant Manager Senan Meade (left) and Paul Davies from Landia (right)

It is not coincidental that the plant uses Landia pumps for mixing, including the Landia GasMix digester-tank mixing system.

Indeed, the part played by Landia equipment in the biogas digester design/ mixing, and their mixing equipment operational expertise is confirmed by the biogas digester plant's owner David McDonnell.

That's not to, in any way, downplay the skill of the biogas plant operator, to achieve such a solid success. Not only that, to do it in a country, with almost none of the subsidy aid available in other nations.

The article below is right to emphasise the ground-breaking biogas digester design results which can be achieved through a long-term focus on the biogas digestion process, regular monitoring of all plant aspects, and attention not only to feedstock quality and consistency, but also preventative maintenance of systems. This includes a simple digester-mixer pipe back-flushing regime as described in the full Press Release included below:

Before you scroll down, we suggest that you might like to watch our video, which is all about the GreenGas business aspects of this page:

Ireland’s Landmark AD Plant Continues to Set Standards – Attributed to Biogas Digester Design

Press Release: Ireland’s first farm-scale AD/Biogas plant might well be approaching its eighth year of operation, but the 24/7 attention to detail at the GreenGas plant in County Limerick has never been more focused.

Anaerobic Digestion Process Schematic Diagram
This Anaerobic Digestion Process Schematic Diagram shows the main stages of fermentation in an anaerobic digestion plant.

Unlike the UK, at that time, with its Feed-In-Tariffs (FiTs), there was no such incentive in 2010 in the Republic of Ireland – but determined to diversify and to continue to take its farm forward, the McDonnell family decided to go ahead with using both its dairy herd’s and poultry manure to produce biogas. The McDonnells had the vision – and had more than done their homework.

They obtained planning permission back in 2003 and had conducted site visits from as far afield as America and Australia (but primarily in Scandinavia and Germany) to look at successful biogas plants.

David McDonnell and his father Michael’s extensive research resulted in an impressive bespoke plant – one created with realistic, sustainable expectations – that has become a landmark in renewable energy for the country.

“The nitrates directive was really beginning to kick-in during the late 2000s”,

said David McDonnell.

“These EU directives meant serious implications for farmers, so with our annual fertiliser costs up at around 100,000 Euros, we wanted to look at how we could produce our own, better, eco-friendly fertiliser, which at the same time for us was a natural progression for the farm. Thanks to our AD operation, our annual fertiliser costs have now been reduced to one third. In the future we can hopefully look at converting our digestate into a marketable product. We wanted to use the land as best we possibly could – and ensure that what came out of our AD plant could be put onto our land”.

‘Lifetime cost was a very big selling point’

He continued:

“Although we worked closely with German engineering firm Kreig & Fischer on the design of our plant, we chose to work directly with our equipment suppliers. This was far more attractive to us”.

“Kirk supplied our first digester (1000m3), with Gary Little recommending Landia for its mixing systems, introducing us to the late Hugh Vaughan. Lifetime cost was a very big selling point for us – as was a relationship with companies who were proud of their work and prepared to roll up their sleeves and make things happen”.

At first, Landia’s GasMix didn’t appear to be achieving the results that had been forecast, but this was soon rectified by a site visit from Hugh Vaughan who back-flushed the pipework to remove a blockage caused by a build-up of sulphur.

Digestate was forced up the reverse way to clear the pipe – and after a short break for lunch, the digester was being mixed to full effect. Since then, as part of its preventative maintenance schedule, the back-flushing of pipework is now a regular part of GreenGas’ rigorous maintenance program.

David McDonnell added:

“GasMix having all moving parts on the outside of the digester is a big plus. You don’t have to take a hit on your gas yield. A service agreement was put in place with Landia and an extended (two years) warranty, but because of the robustness and reliability of the pumps, the latter was never needed”.

‘Efficiency of the mixing systems’

In addition to the GasMix system, GreenGas also invested in Landia’s side-entry mixers for its digesters to add some extra impetus if and when required. Such is the efficiency of the mixing systems that GasMix (combining a Landia chopper pump and a series of venturi nozzles) only has to run for approximately 15 minutes every two and a half hours. The side-entry mixers run for only approximately 5 minutes every hour, so energy usage is extremely low.

Plant Manager, Senan Meade, who has been with GreenGas since 2013, takes up the story:

“Even though our dry solids are usually a maximum of 5%, we feel that the side-entry mixers give us a guarantee”,

he said.

“We scrutinise our feedstock, but it changes. Typically, cattle slurry will be richer in the winter with the cows indoors being fed on maize. Straw can be quite challenging to process. Food waste can vary tremendously, and we’ve had all sorts of unexpected objects found in it – shovels, car engine parts and even a stray bowling ball!”

“That said, this is pretty much in the past now because we have developed Feedstock Acceptance Agreements with our suppliers, who have become trusted partners. We monitor every load. We need to protect our bugs. We have rejected lots of potential feedstock because continuity of supply is so important to us”.

[box type=”info” style=”rounded” border=”full”]Since 2010, GreenGas has developed from a quarter to a half, to its current status as a 1MWel plant, adding a new 1800m3 digester (from Wolf-Austrian) in 2015.[/box]

Image shows the Landia pasteuriser at GreenGas.
The Landia pasteurizer fitted at GreenGas, which increases digestate temperature to comply with EU ABP sterilisation requirements.

As well as pumps, mixers and the GasMix system from Landia, GreenGas also uses a Landia Pasteurizer. It switched this, from the front to the back end of the process, two years ago. It made this change to the biogas digester design because it made more sense to increase the temperature of digestate (already at 40 degrees) to the required ABP pasteurisation temperature of 70 degrees – rather than wait for it to be heated up from an ambient storage temperature of only 6-10 degrees. Excess heat is used for the plant and for the poultry sheds on the farm nearby.

“The plant runs very well”,

continued Senan Meade:

“We always avoid shock-loading the digesters – and everything is enclosed, but we are very conscious about being good neighbours, so we use carbon filters and always keep all doors closed when unloading or mixing.”

“Landia’s advice was to rotate the use of the mixers and nozzles on the digesters to help make them last as long as possible. Regular daily checks are very worthwhile, just doing the basics with oil and grease when required. You can catch any problems very early. It’s all about getting the balance right and fine-tuning so that you hit the sweet spot for a smooth-running plant.

“We have alarms in place and can keep a very close eye on things away from the plant on our smartphones. Even after all this time, we’re still learning – constantly”.

David McDonnell concluded:

“We’re beginning to approach our eighth year as an AD operator – and have to say that with 23 of its pumps and mixers on site, Landia’s very robust and reliable equipment has certainly played its part in the growth, well-being and efficiency of this plant.

“We’ve come a long way because there was no real AD industry in this country when we started and certainly very few financial incentives – and we still have nowhere near the catalyst as Northern Ireland or as in many other EU member states.”

“Our gradual investment in what now totals over half a million Euros in Landia’s pumps and mixers speaks for itself, but the back-up, pride and enthusiasm to help us get the very best from our plant's biogas digester design, is priceless”.

For more information about Landia biogas digester mixer pump design visit www.landia.co.uk – or call 01948 661 200.

For more information about the first on-farm biogas digester design of its type in the republic of Ireland visit the www.greengas.ie archive here.
